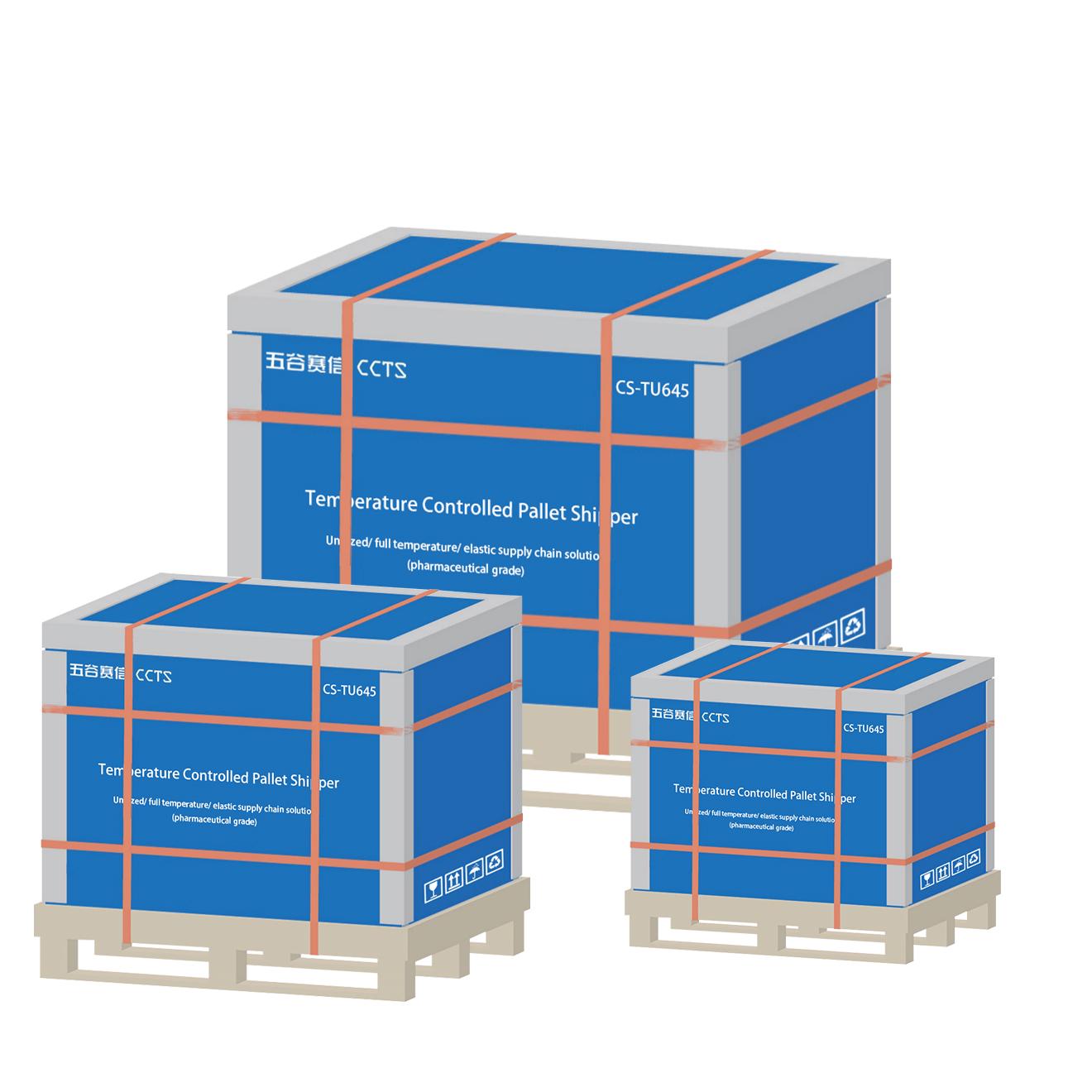

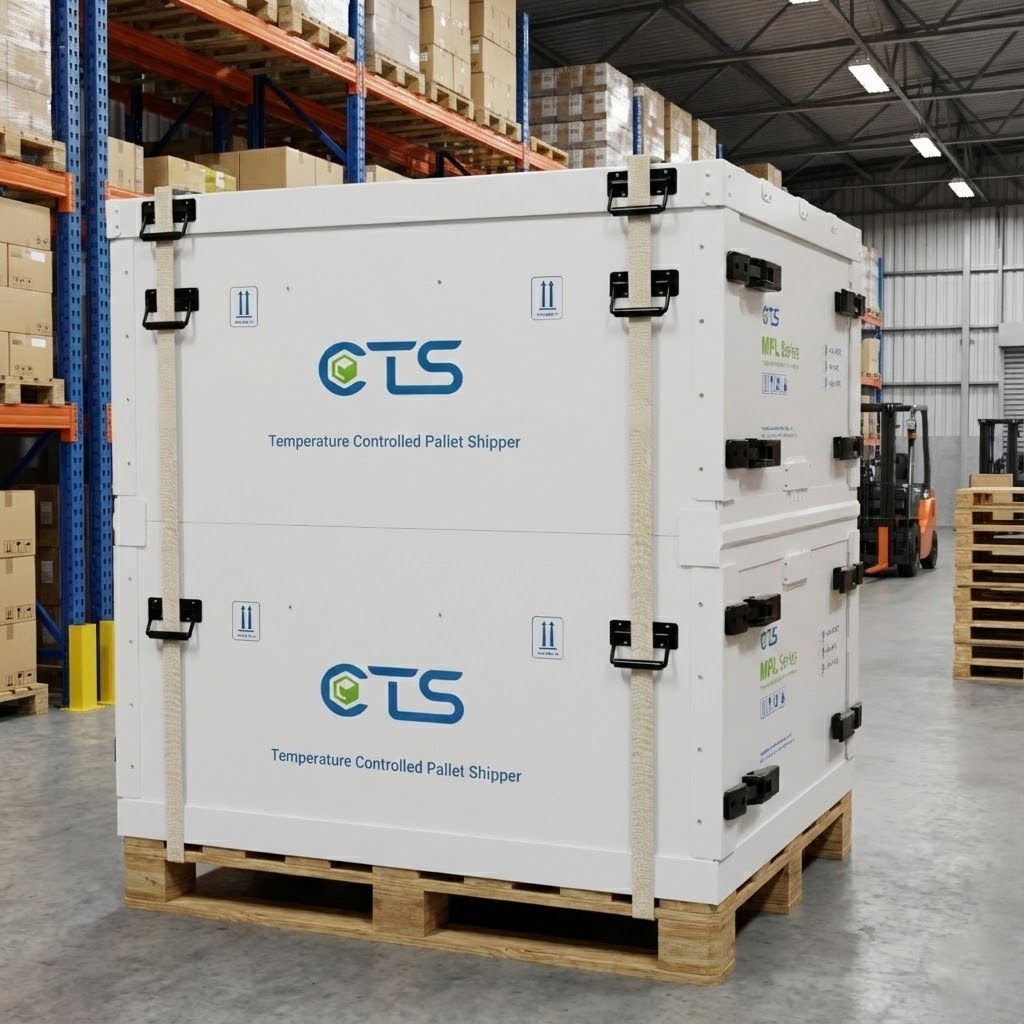

CS-TU series Passive temperate-controlled pallet shipper
TU series is a reusable passive temperature controlled pallet shipper,which is designed to ensure the safe transportation of temperature sensitive pharmaceutical products.It is made of VIP and PU as insulation material ,matched with advanced phase change material, keep cooling from 120 hours to 168 hours, with precise temperature controlling at -21℃,-18℃,-16℃,5℃, or 20℃. Equiped with reusable data logger,the temperature humidity and location could be remote monitoring at real time, It is also strictly pre-qualified according to ISTA, WHO, GSP standard, and suitable for bulk transportation of cold chain products such as vaccine,reagent and cold medicine.

Feature

  • · Card splicing structure
  • · Can be disassembled and assembled for recycling
  • · Insulation layer as PU+VIP material
  • · Recyclable/waterproof ice packs
  • · High thermal performance with duration from 5 to 7 days
  • · Forklift operation possible
  • · Sturdy and durable
Switch Temperature Freely by PCM
【W】-60ºC~-50ºC
【E】-30ºC~-20ºC
【K】-25ºC~-15ºC
【B】-20ºC~-10ºC
【J】-10ºC~0ºC
【F】0ºC~+4ºC/5ºC
【C】+2ºC~+8ºC
【T】+10ºC~+20ºC
【D】+15ºC~+25ºC
【P】+20ºC~+30ºC

CS-TU645AV_5C

2~8℃
415L
96 hours

CS-TU645AV_M21K

-25~-15℃
415L
96 hours

CS-TU645AV_21D

15~25℃
415L
96 hours

CS-TU650AV_5C

2~8℃
650L
168 hours

CS-TU650AV_M21K

-25~-15℃
650L
168 hours

CS-TU650AV_21D

15~25℃
650L
168 hours

Product Specification

Model No.
CS-TU645AV_5C
Payload Volume
415 Liters
Coolant Type
PCM Coolant
Temperature Range
2~8℃
Duration
96 hours
Outer Dimension
1200*1000*1100mm
Payload Size
900*700*660mm
Product Type
Reusable Pallet
Product Series
TU Series

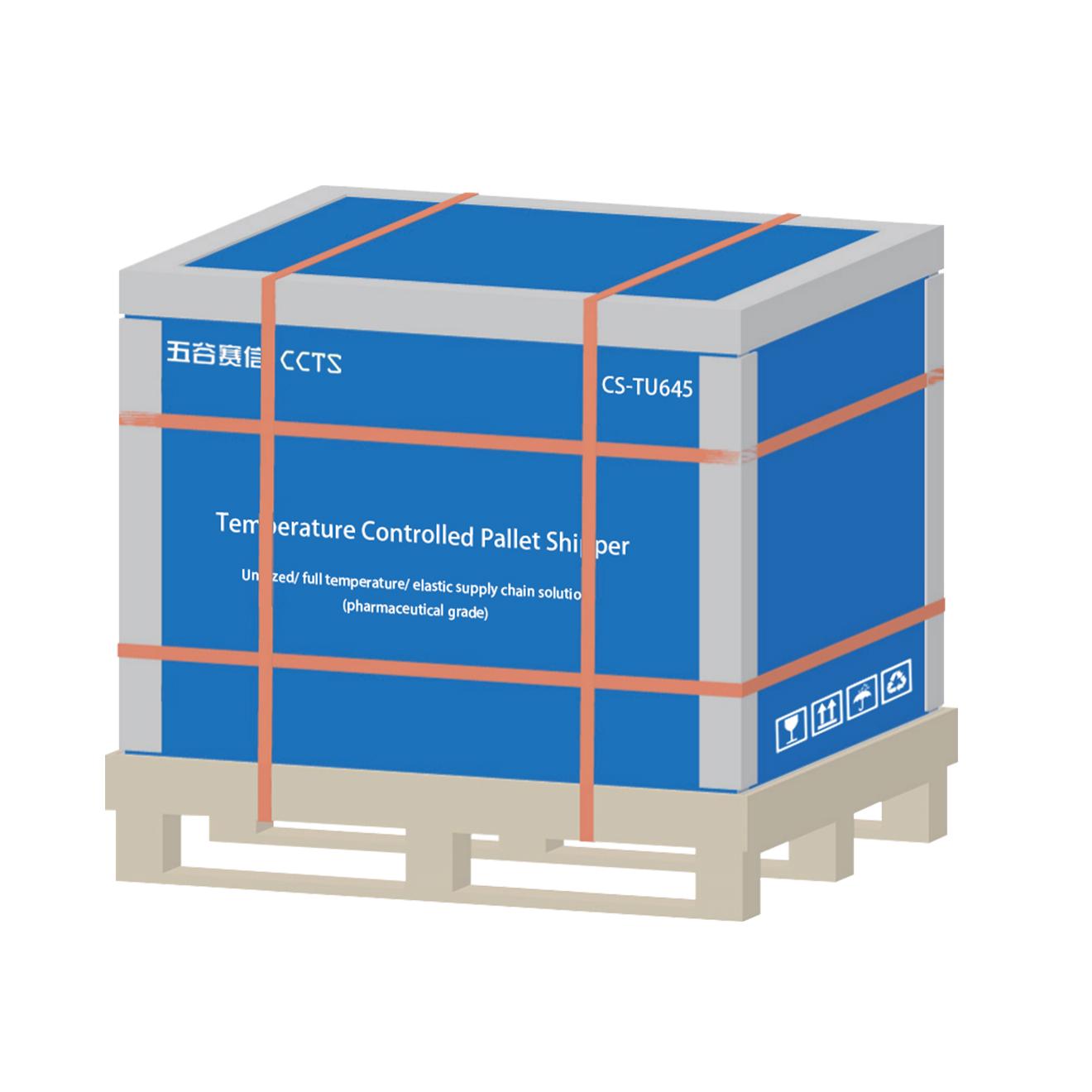

Detail Picture

Application

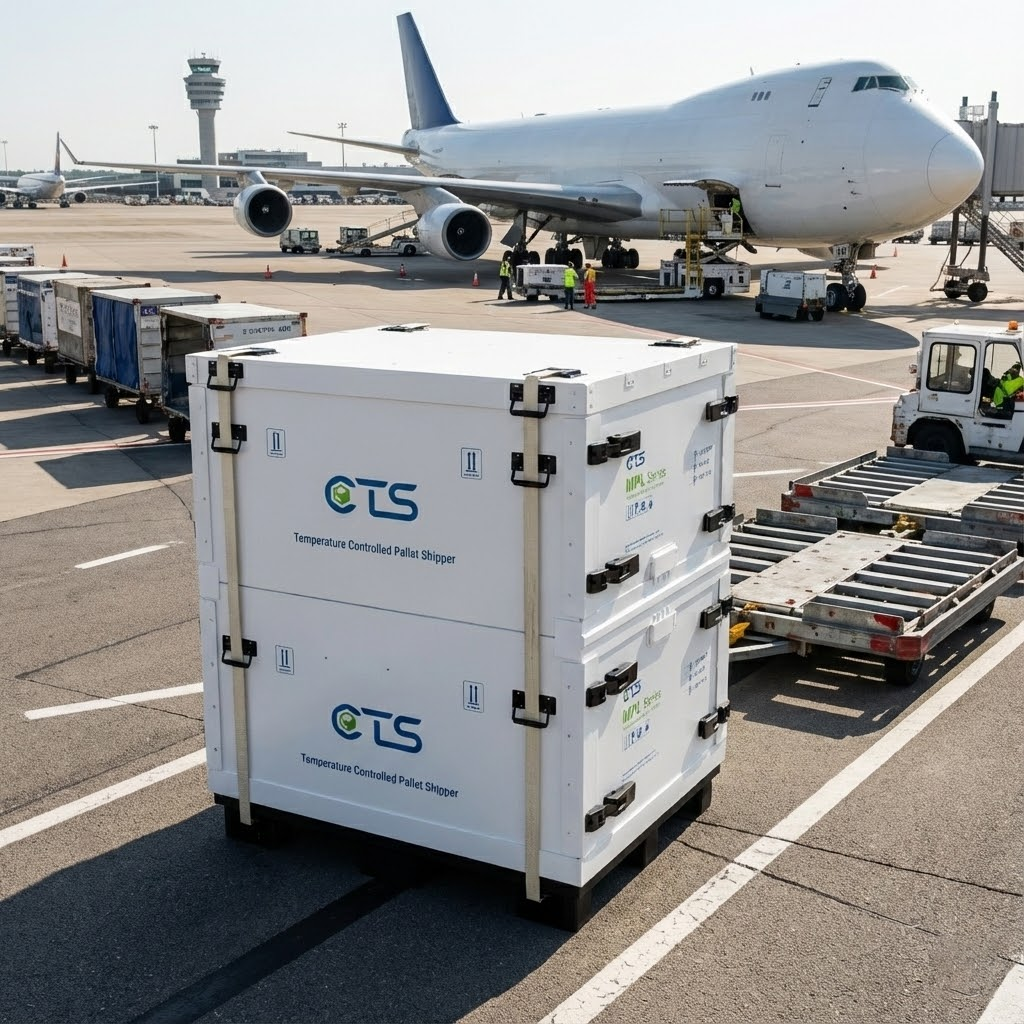

Suitable for vaccines, drugs, reagents, sensitive chemicals and electronic components to be transported across international borders for a long time.

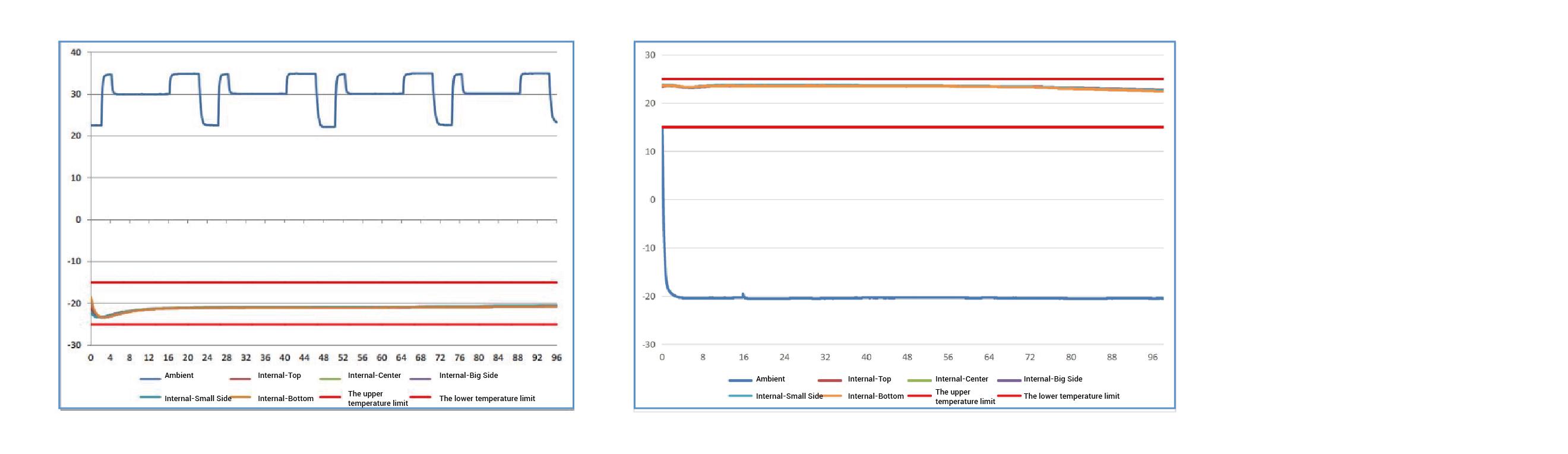

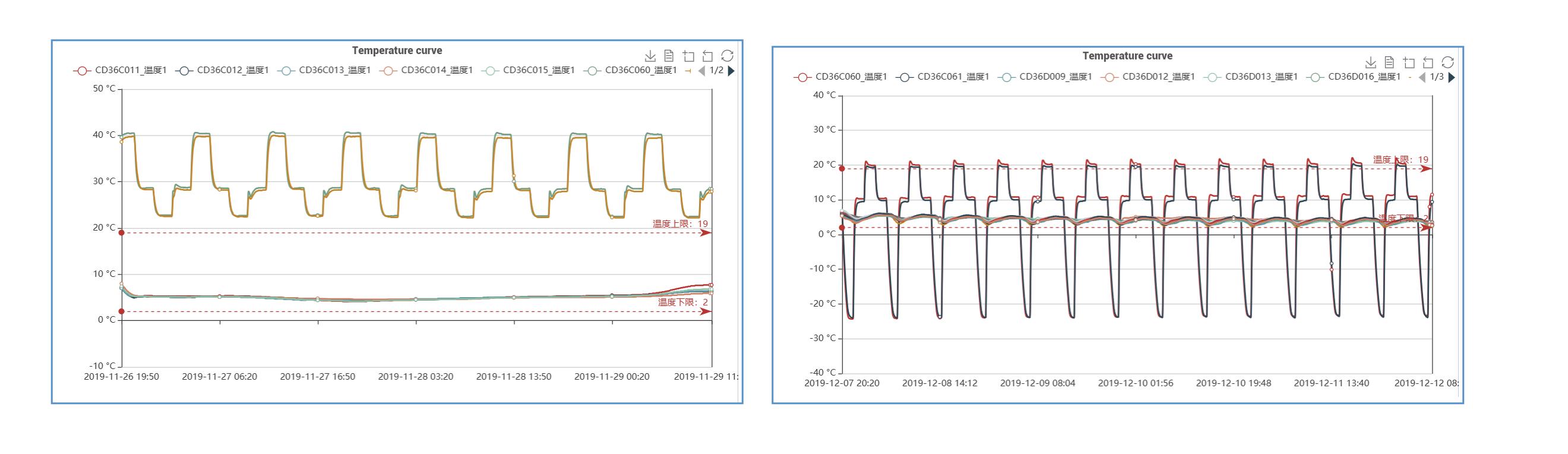

Testing Graph
