Reusable Type
PCM Coolant
12-96L
2~8℃、-25~-15℃、15~25℃

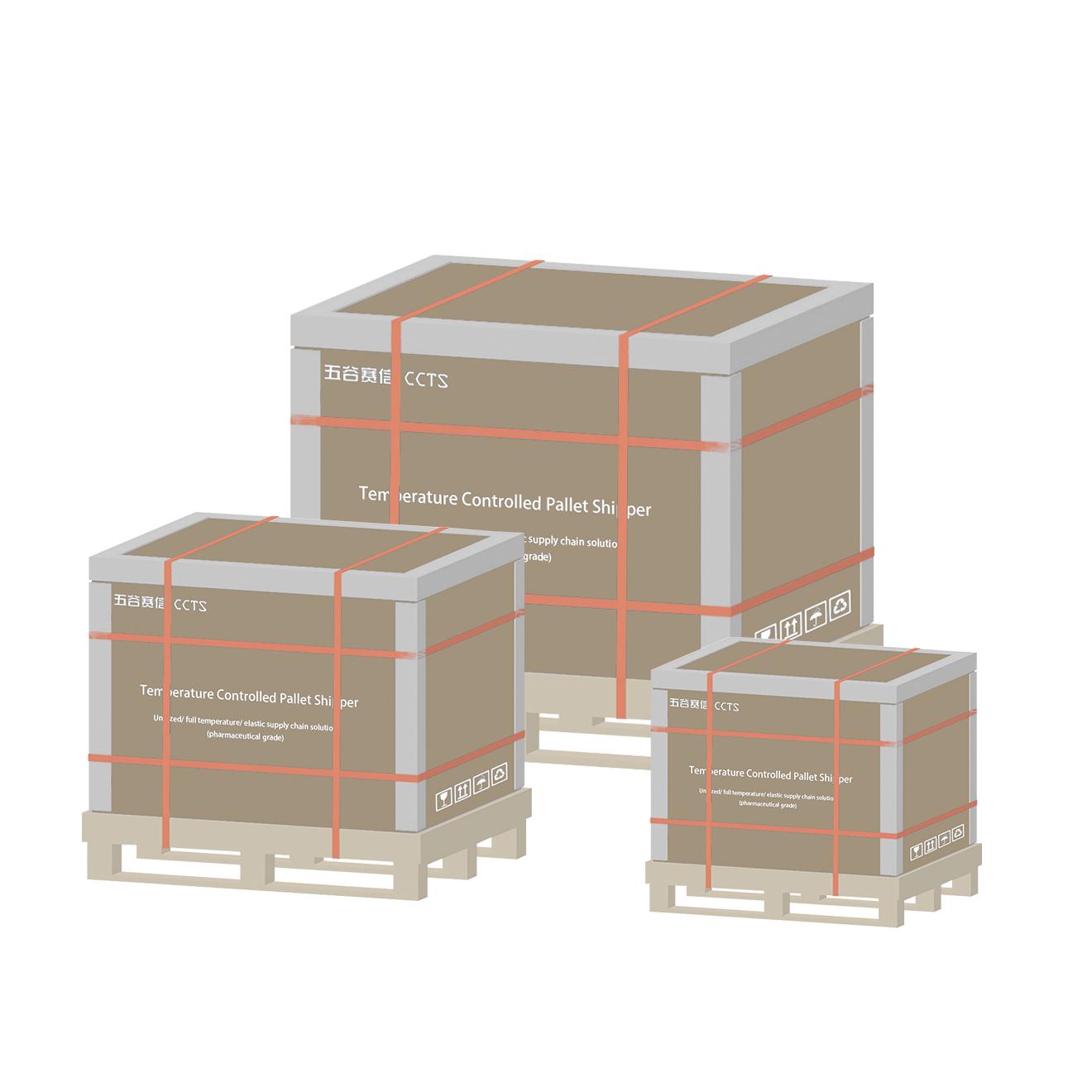

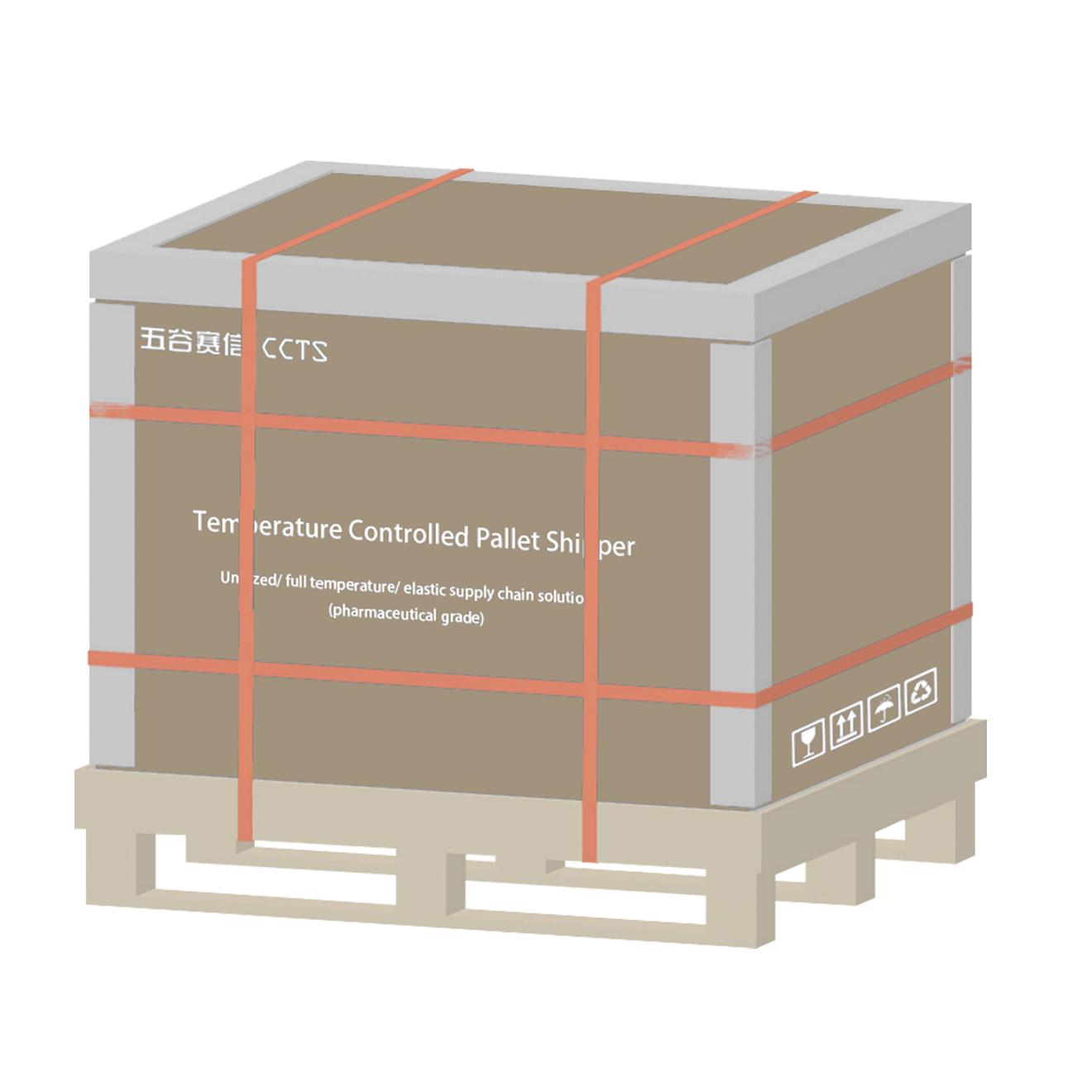

CS-TU series Passive temperate controlled pallet shipper
TU series is a high impact resistance and durable temperature-controlled pallet shipper,which is designed to
ensure the optimum protection and stability of your valuable goods during transportation. By adding excellent
PCM coolant the temperature duration can maintain at 120～168 h. The CS-TU series meet your exact needs. It
utilizes a removable, snap-on construction craft, easy to assemble and disassemble. Being forklift operable
can helps to reduce storage room and labor costs. The CS-TU series Passive temperature controlled pallet
shipper is your ideal transport partner.
Feature
- · Clip splicing structure
- · Waterproof ice packs
- · Recyclable and low cost
- · Size can be Customization
- · Easy to assemble
Switch Temperature Freely by PCM
【W】-60ºC~-50ºC
【E】-30ºC~-20ºC
【K】-25ºC~-15ºC
【B】-20ºC~-10ºC
【J】-10ºC~0ºC
【F】0ºC~+4ºC/5ºC
【C】+2ºC~+8ºC
【T】+10ºC~+20ºC
【D】+15ºC~+25ºC
【P】+20ºC~+30ºC
CS-TU850B_5R
+2~+20℃
607L
96 hours
CS-TU850B_5C
+2~+8℃
573L
72 hours
CS-TU850B_M21K
-25~-15℃
573L
72 hours
CS-TU780B_5R
+2~+20℃
513L
96 hours
CS-TU780B_5C
+2~+8℃
491L
72 hours
CS-TU780B_M21K
-25~-15℃
491L
72 hours
CS-TU1500B_5R
+2~+20℃
1194L
96 hours
CS-TU1500B_5C
+2~+8℃
1144L
72 hours
CS-TU1500B_M21K
-25~-15℃
1144L
72 hours
CS-TU1600B_5R
+2~+20℃
1183L
96 hours
CS-TU1600B_5C
+2~+8℃
1133L
72 hours
CS-TU1600B_M21K
-25~-15℃
1133L
72 hours
CS-TU2600B_5R
+2~+20℃
1120L
96 hours
CS-TU2600B_5C
+2~+8℃
1162L
72 hours
CS-TU2600B_M21K
-25~-15℃
1162L
72 hours
Product Specification
Model No.
CS-TU850B_5R
Payload Volume
607 Liters
Coolant Type
PCM Coolant
Temperature Range
+2~+20℃
Duration
96 hours
Outer Dimension
1340x940x1290mm
Payload Size
1050x650x890mm
Product Type
Single-Use Pallet
Product Series
TU Series
Detail Picture
Application
Suitable for vaccines, drugs, reagents, sensitive chemicals and electronic components to be transported across
international borders for a long time.
Testing Graph
