DL-M15C_20 temperature recorder with external probe

Download Product Specifications (PDF)

DL-M15C_20 Medical Cold Chain Data Logger

Designed for pharmaceutical cold chains, the DL-M15C_20 uses an external temperature probe to monitor -20～+45℃ with ±0.5℃ accuracy. It combines 4G cloud synchronization with local storage for more than 260,000 data sets and automatically uploads offline records when connectivity returns. Bluetooth printing, USB data export and alerts through web, app and mini-program interfaces support temperature traceability. Its rechargeable 2600mAh battery provides 15 days of operation.

View all temperature and humidity data loggers

Function

External temperature monitoring with support for additional probes
4G cloud synchronization with offline local storage and automatic upload after reconnection
Bluetooth printing and USB data export
GPS/LBS positioning for shipment tracking
Audible and visual alarms, SMS and email notifications

Feature

IP65 protection and 2-meter drop resistance
Cloud and local storage for more than 260,000 data sets
15-day operation with a rechargeable 2600mAh lithium battery
Three customizable alarm thresholds
Web, app and mini-program monitoring
Supports GMP and FDA 21 CFR Part 11 compliance workflows
Expandable with additional probes

Model

DL-M15C-20

4G GPS/LBS 2600mAh 15 days

Product Specification

Product Name: 4G Temperature Recorder
Model No.: DL-M15C-20
Temperature Range: External probe: -20～+45℃ / ±0.5℃
Standby: 15 days
Recording Period: 1 minute～24 hours, configurable
Data Capacity: >260,000 data sets
Data Continuation: Automatically uploads offline recorded data
Probe Type: External temperature probe
Charging Interface: Micro USB 5V / 1A
Data Printer: Bluetooth
Alarm Type: Sound / Light / SMS / Email
Transmission Type: 4G
Display: LED display
Location Type: GPS/LBS
Battery: Rechargeable lithium battery
Waterproof Grade: IP65
Product Size: 101 × 58 × 20 mm
Weight: 230 g
Battery Capacity: 2600mAh
Parts: Power adaptor

Detail Picture

DL-M15C_20 temperature recorder with external probe

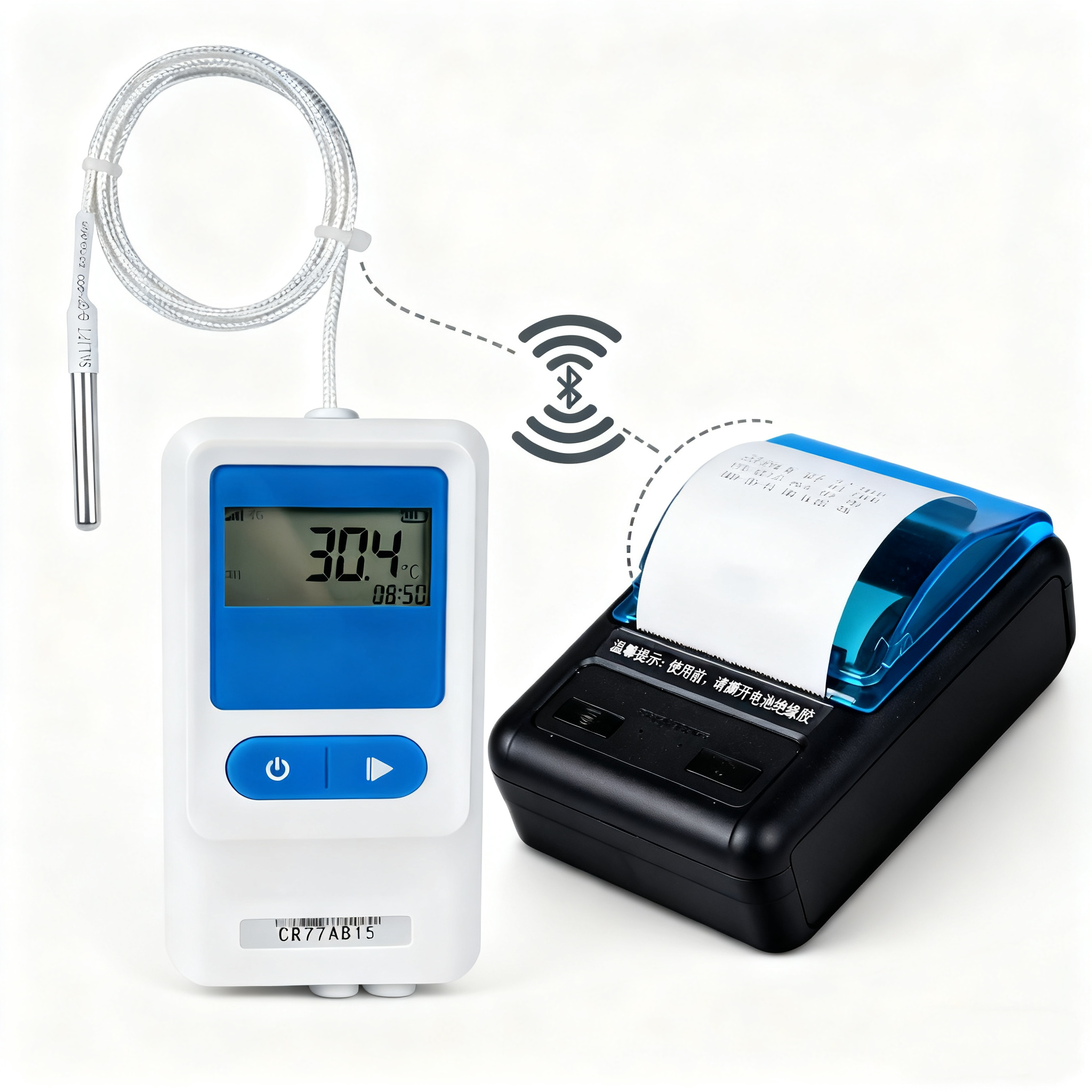

DL-M15C_20 with a Bluetooth printer

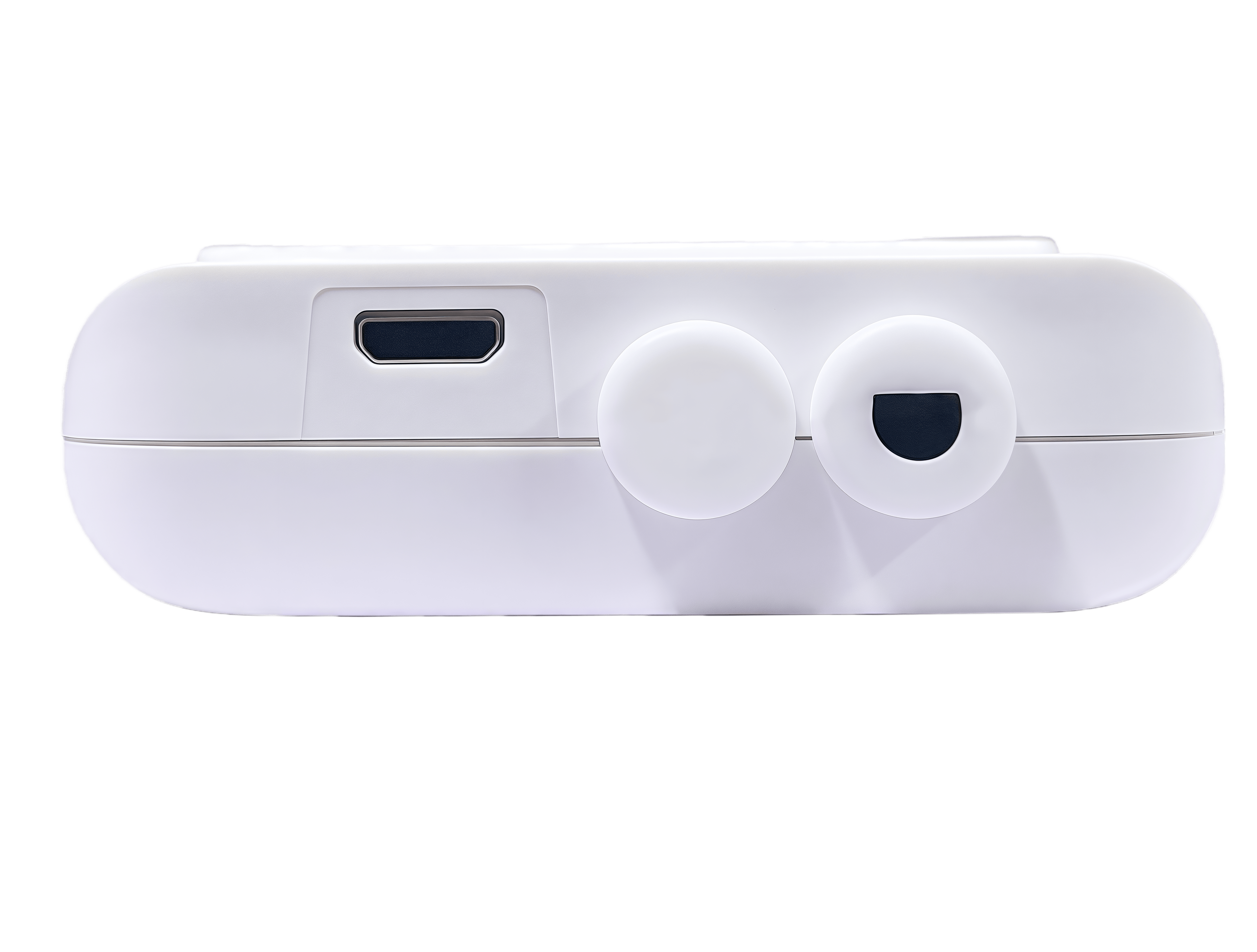

DL-M15C_20 USB and probe interfaces

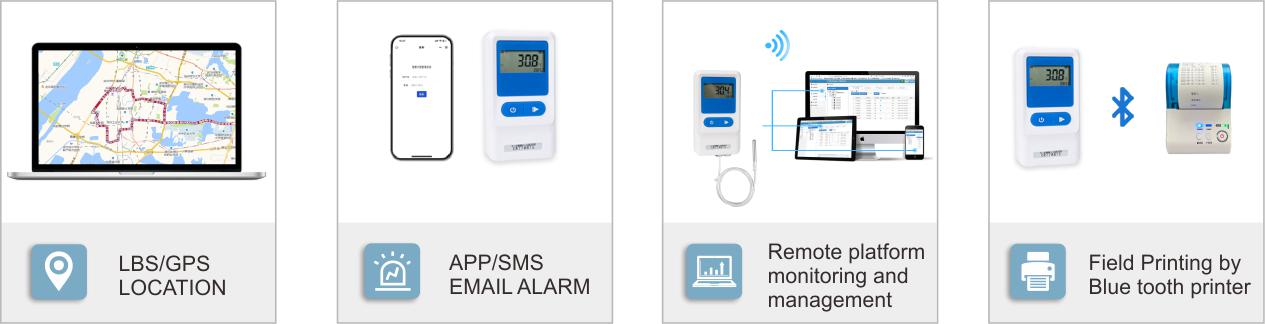

Cloud Monitoring and Connectivity

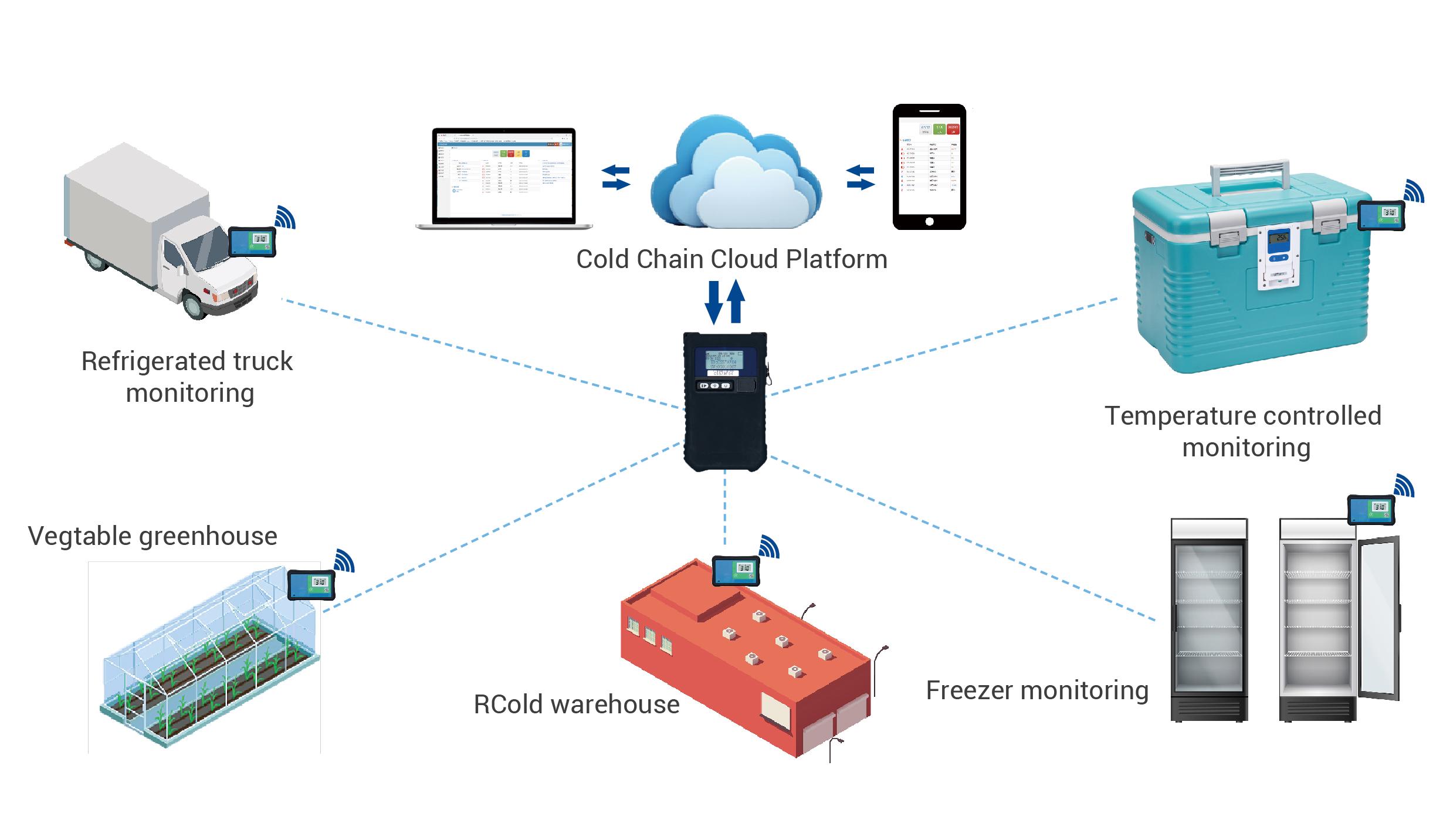

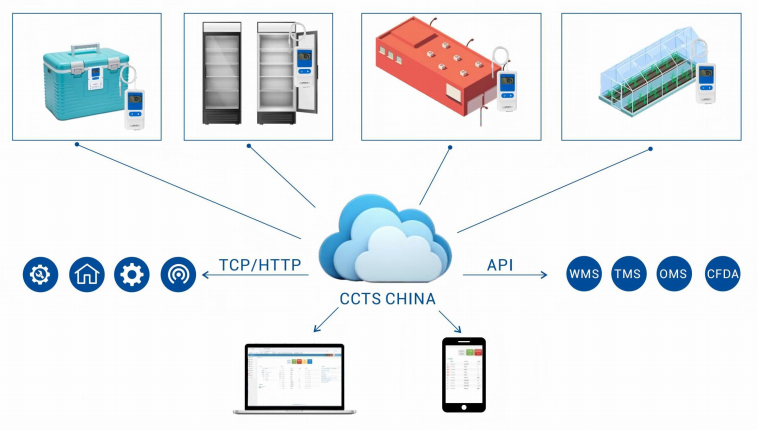

Cloud monitoring connections for cold chain carriers and devices

Application

Vaccine refrigerator monitoring
Clinical trial and pharmaceutical shipments
Laboratory incubator monitoring
Dairy product distribution

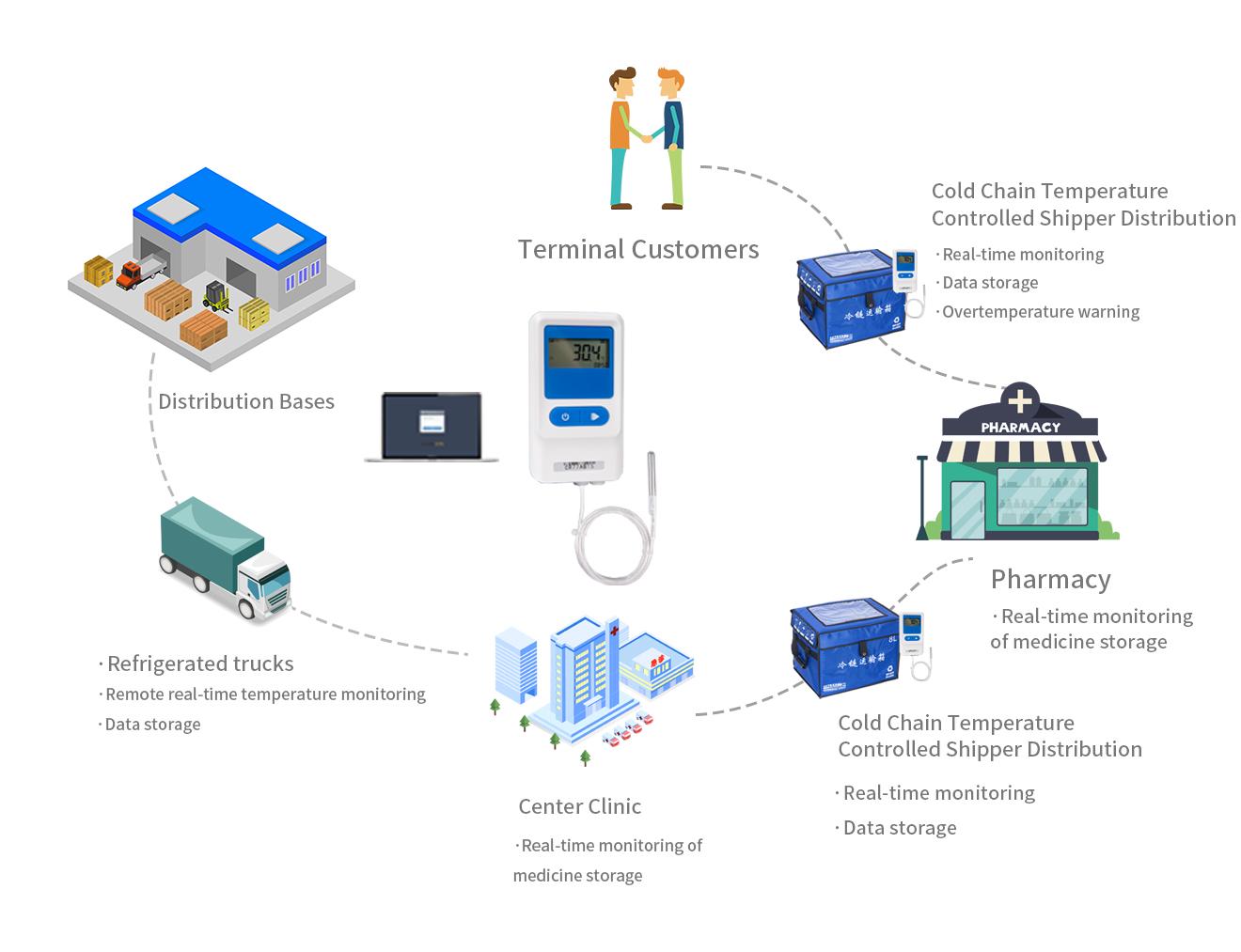

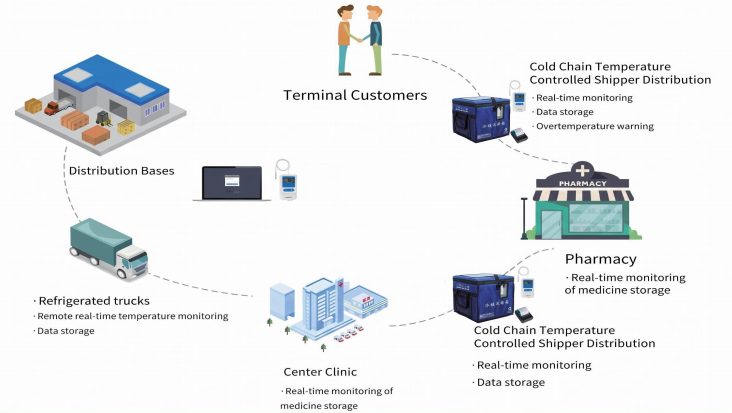

DL-M15C_20 cold chain transport and storage applications
