N Series Insulation Shippers
N series is with integrated EPS (Expanded Polystyrene) as the thermal layer,which can maintain chilled at 48~72 hours. These shippers are pre-qualified systems offering 2 to 8°C temperature control for up to 72 hours. Tested to a wide range of ambient temperatures, these systems give you a disposable cost-effective solution for shipping various volumes in all seasons,It is an ideal solution for safe storage and delivery of temperature sensitive products.

Feature

  • · 48-72hours cooling preservation performance
  • · Light and tough
  • · Pre-qualified according to ISTA, WHO,GSP
  • · Easy to Use and Assemble with detailed 3D manual and SOP manual
  • · Shock absorbent Damage resistant,Economical
  • · Custom sizing, insulation material and thicknesses, and printing available
Switch Temperature Freely by PCM
【W】-60ºC~-50ºC
【E】-30ºC~-20ºC
【K】-25ºC~-15ºC
【B】-20ºC~-10ºC
【J】-10ºC~0ºC
【F】0ºC~+4ºC/5ºC
【C】+2ºC~+8ºC
【T】+10ºC~+20ºC
【D】+15ºC~+25ºC
【P】+20ºC~+30ºC

N12A

-2~8℃、-25~-15℃、15~25℃, etc
12L
48-72h

N35B

-2~8℃、-25~-15℃、15~25℃, etc
35L
48-72h

N36A

-2~8℃、-25~-15℃、15~25℃, etc
36L
48-72h

N60A

-2~8℃、-25~-15℃、15~25℃, etc
60L
48-72h

N60B

-2~8℃、-25~-15℃、15~25℃, etc
60L
48-72h

N90A

-2~8℃、-25~-15℃、15~25℃, etc
90L
48-72h

N110A

-2~8℃、-25~-15℃、15~25℃, etc
110L
48-72h

Product Specification

Model No.
N12A
Payload Volume
12 Liters
Coolant Type
PCM Coolant
Outer Dimension
495*445*435mm
Inter Dimension
265*215*235mm
Payload Size
225*175*170mm
Product Type
Reusable Type
Product Series
N Series

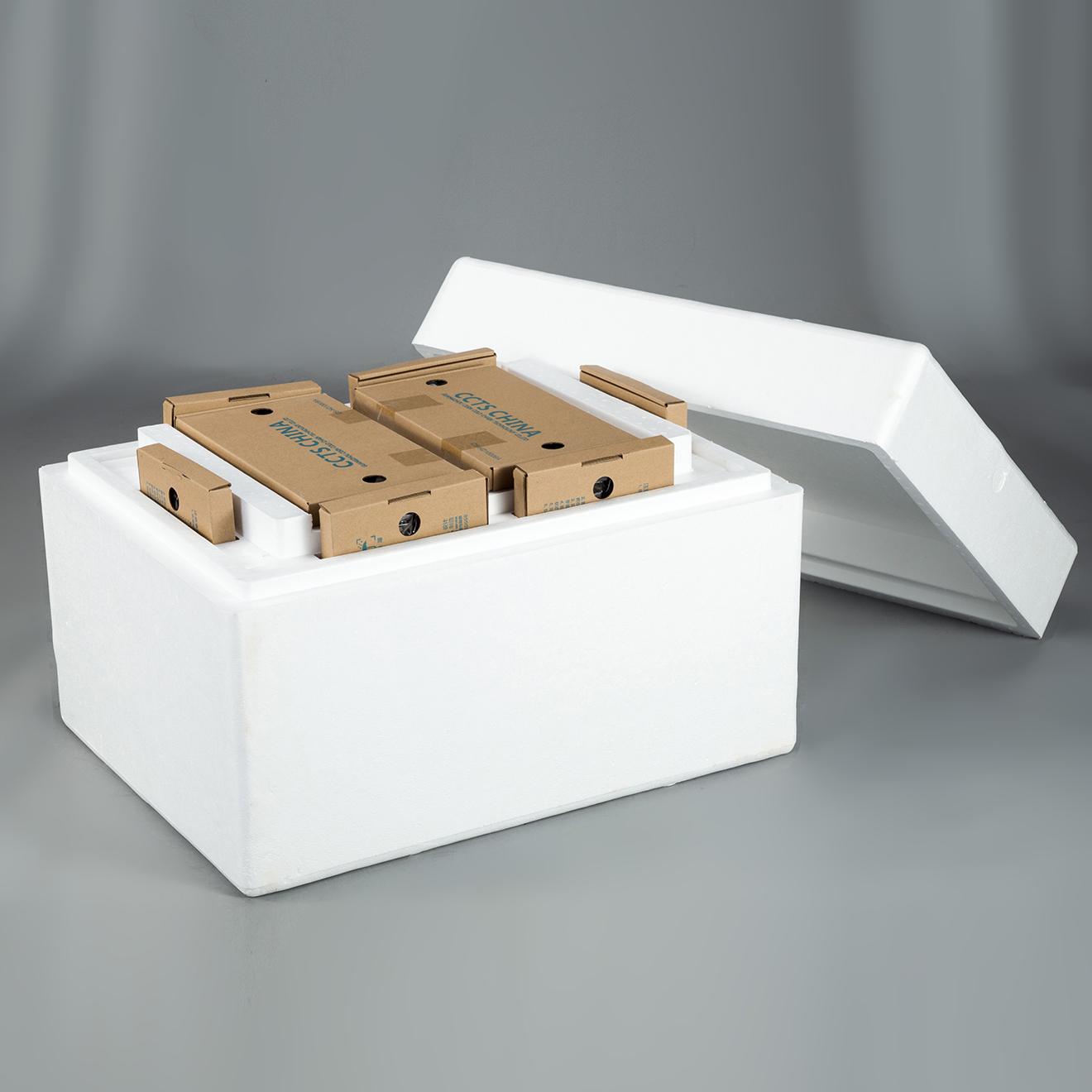

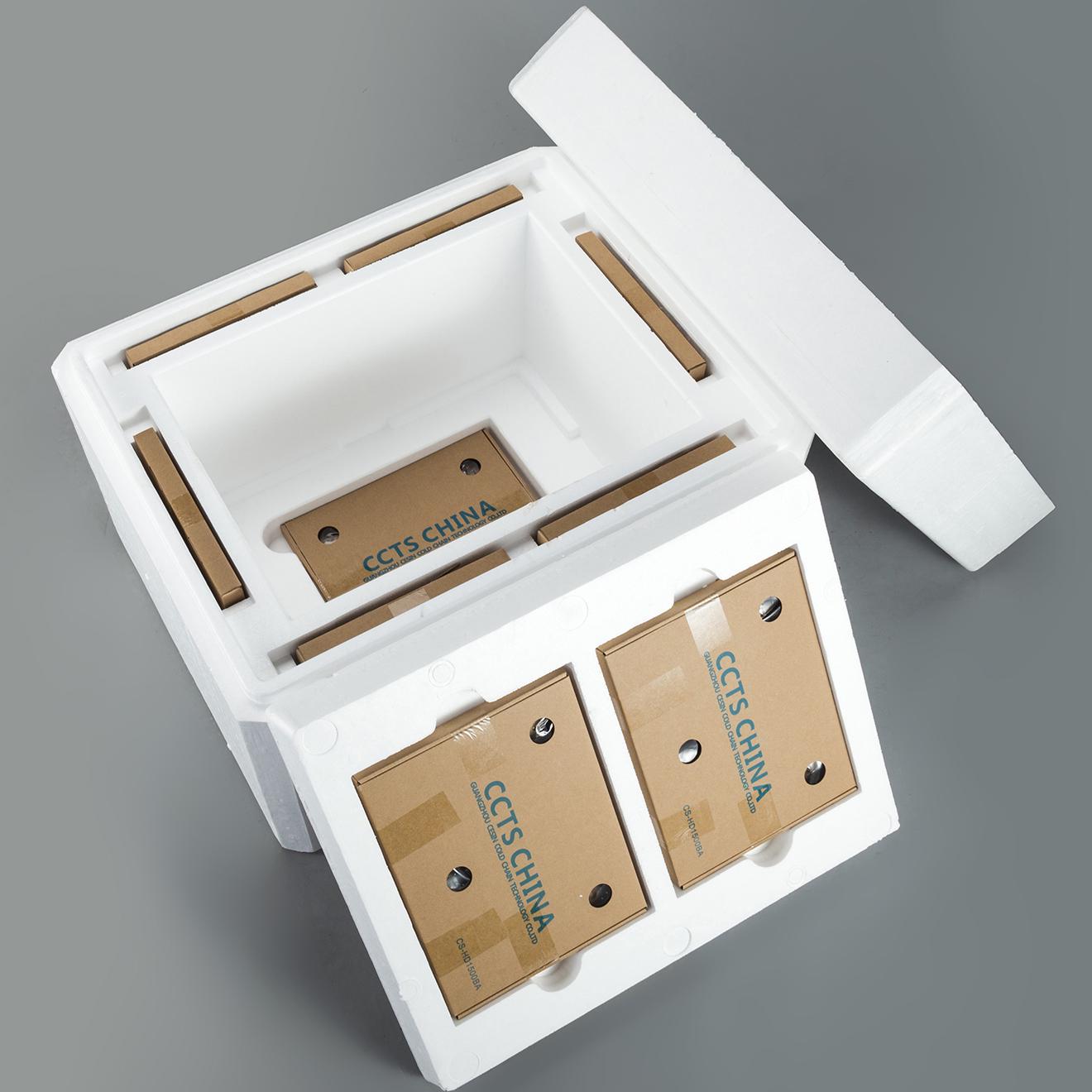

Detail Picture

Application

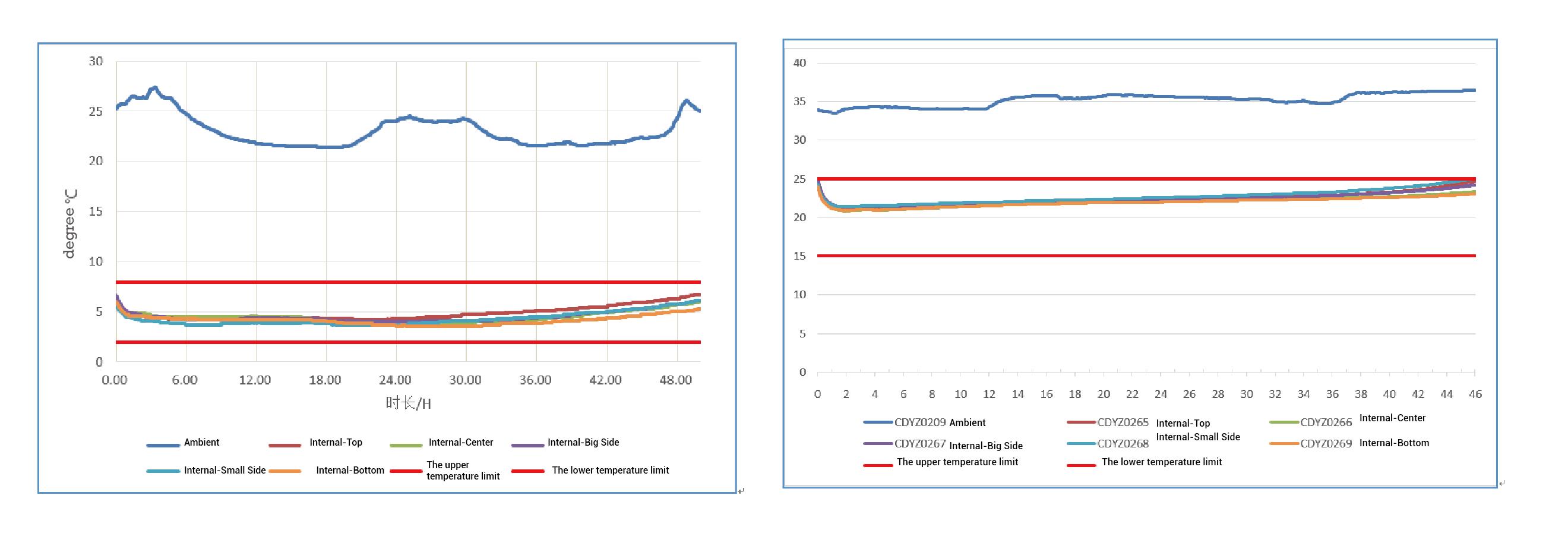

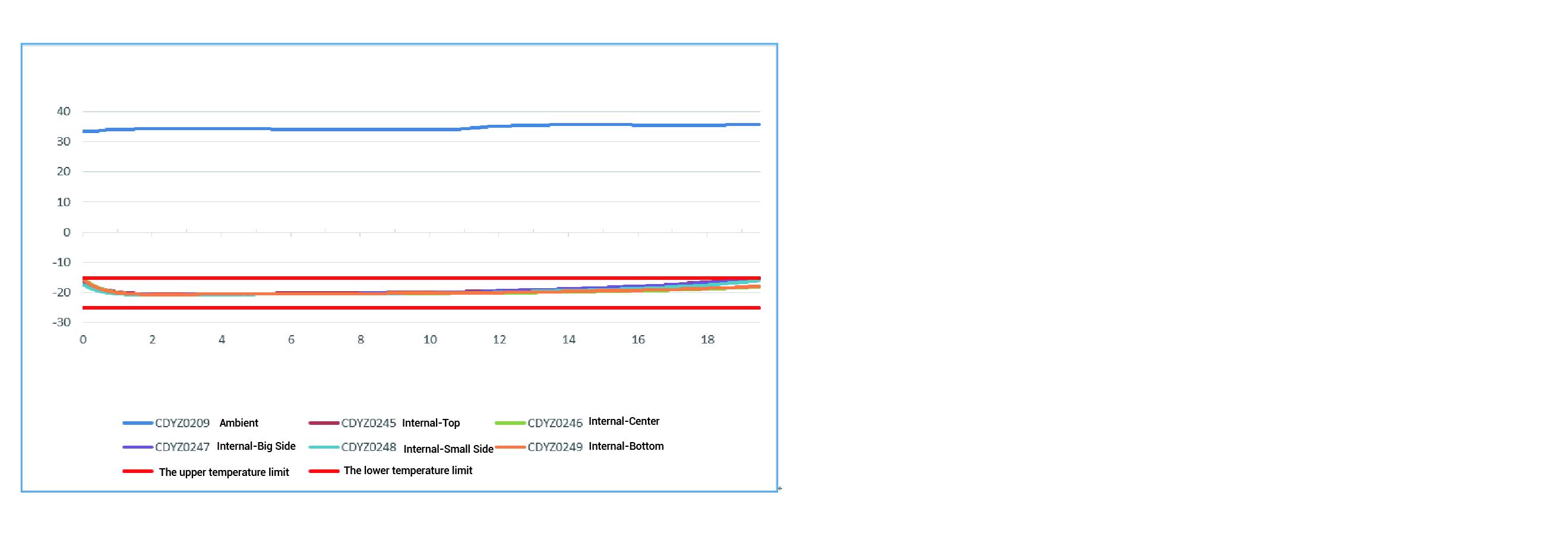

Testing Graph
