Reusable Type
PCM Coolant
12-96L
2~8℃、-25~-15℃、15~25℃
VA Series Insulation Shipper
VA series is an insulation shipper of using VIP(vacuum insulated panels) material with duration up to five days.
This shipper is specifically designed to maintain temperature within basic safe temperature range during the cold
chain transport, storage of medicine,vaccine, reagent or temperature sensitive chemicals and so on. All VA series
insulation shipper are tested under ISTA 7D profile,Drop test,Stacking test, leakage test,Puncture test, which can
ensure the safety of your cargo when enjoying high quality and exquisite design.
Feature
- · 96-120 hours cooling preservation performance
- · Pre-qualified according to ISTA, WHO,GSP
- · Easy to Use and Assemble with detailed 3D manual and SOP manual
- · Shock absorbent Damage resistant,Economical
- · Custom sizing, insulation material and thicknesses, and printing available
Switch Temperature Freely by PCM
【W】-60ºC~-50ºC
【E】-30ºC~-20ºC
【K】-25ºC~-15ºC
【B】-20ºC~-10ºC
【J】-10ºC~0ºC
【F】0ºC~+4ºC/5ºC
【C】+2ºC~+8ºC
【T】+10ºC~+20ºC
【D】+15ºC~+25ºC
【P】+20ºC~+30ºC
VA1296Q
-2~8℃、-25~-15℃、15~25℃, etc
12L
96-120h
VA1696Q
-2~8℃、-25~-15℃、15~25℃, etc
16L
96~288h
VA2896Q
-2~8℃、-25~-15℃、15~25℃, etc
28L
96~288h
VA5696Q
-2~8℃、-25~-15℃、15~25℃, etc
56L
96~288h
VA9696Q
-2~8℃、-25~-15℃、15~25℃, etc
96L
120~288h
Product Specification
Model No.
VA1296Q
Payload Volume
12 Liters
Coolant Type
PCM Coolant
Outer Dimension
375*370*390mm
Inter Dimension
265*285*285mm
Payload Size
231*231*231mm
Product Type
Reusable Type
Product Series
VA Series

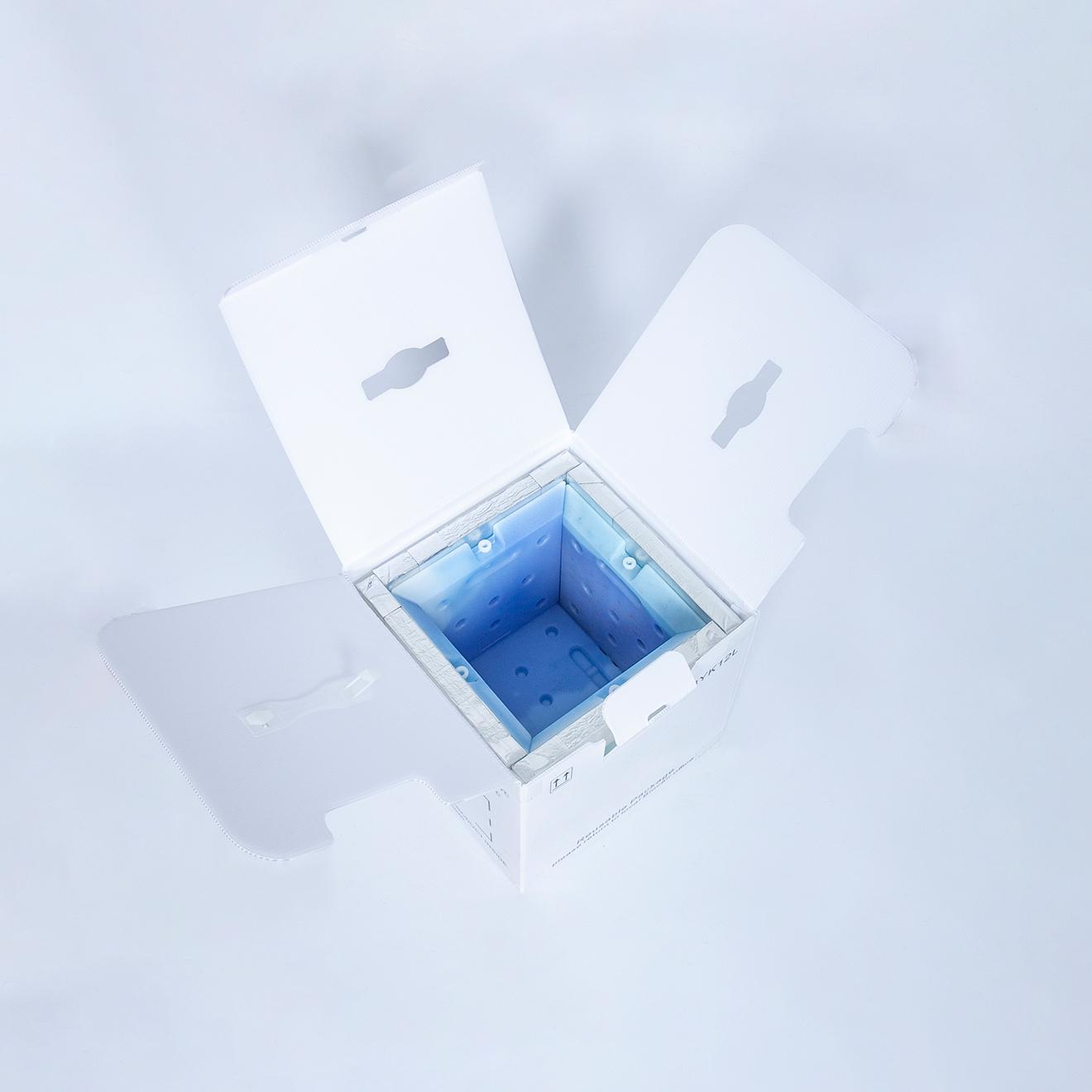

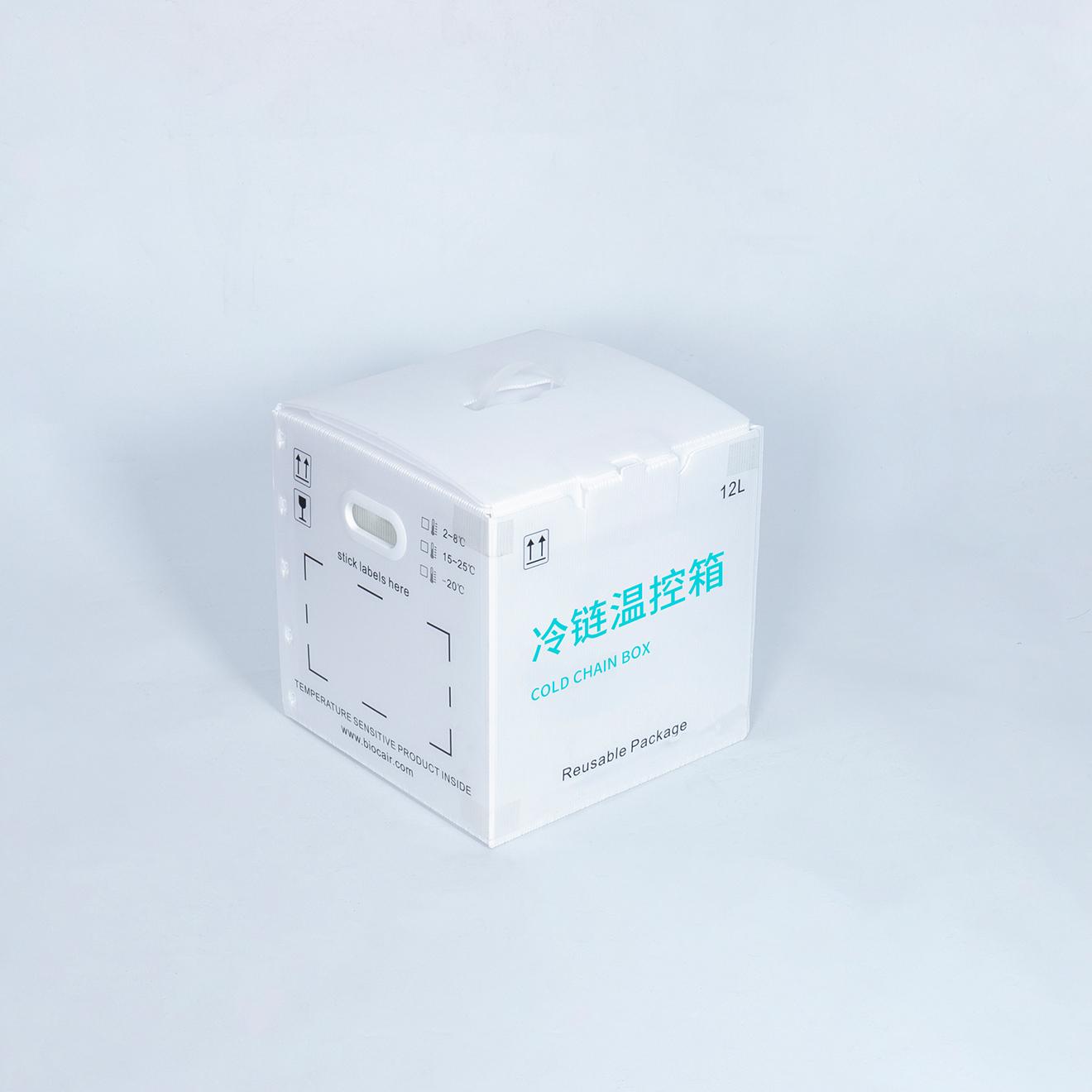

Detail Picture
Application
Suitable for vaccines, drugs, reagents, sensitive chemicals and electronic components to be transported across
international borders for a long time.

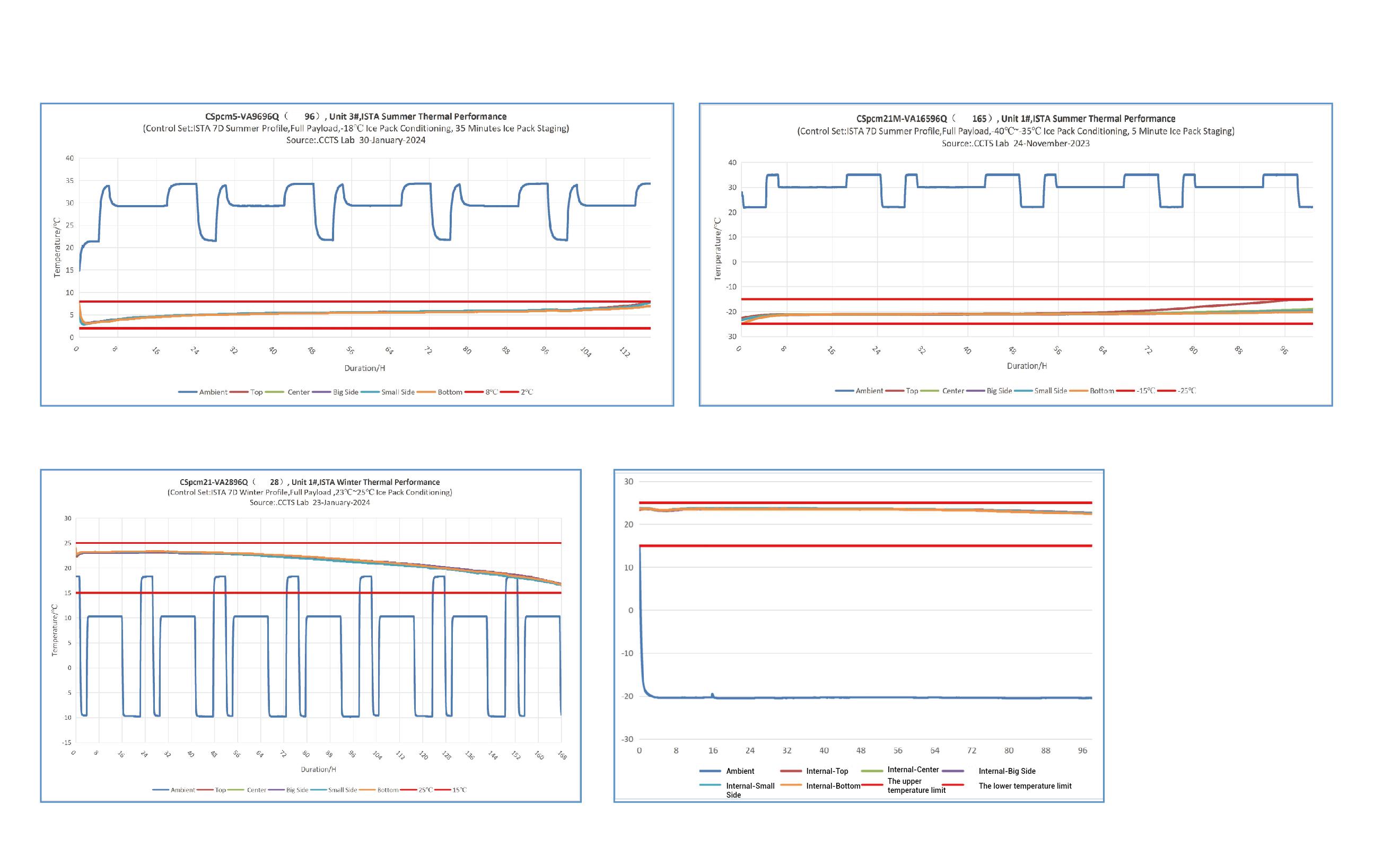

Testing Graph
