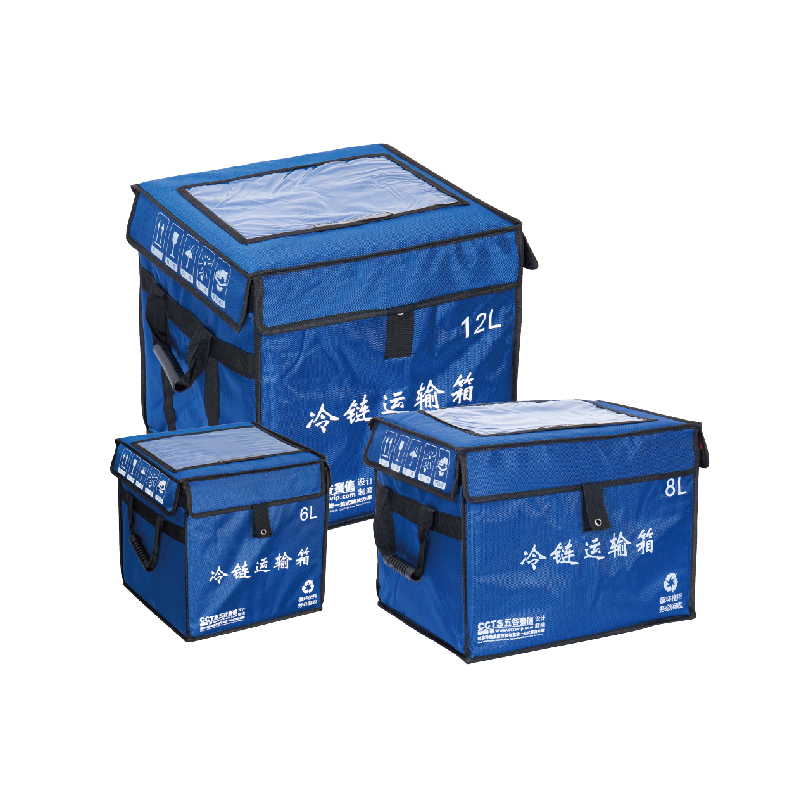

VB Series Insulation Shipper
VB series is a reusable cold chain package specially designed to safeguard biological specimens, vaccine,cold pharmaceuticals, and other healthcare products. This specialized pharmaceutical cold chain packaging is pre-qualified according to WHO, GSP, and ISTA Standards. It can achieve various temperature ranges including 2℃ - 8℃, -25℃ -15℃, and 15℃ - 25℃, with precise temperature control and duration of 96 - 120 hours. Select the VB series temperature-controlled transportation shipper to overcome the temperature challenges across time and space, ensuring that safety and quality are always by your side.

Feature

  • · The controllable and adjustable temperature can meet a wide range of requirements, especially for delicate pharmaceuticals
  • · Resuable and Durable, reducing carbon footprint and cost
  • · Various payload sizes are available
  • · Easy to assmble and operate
  • · Using high perfomance thermal material and PCM(phase change material)
Switch Temperature Freely by PCM
【W】-60ºC~-50ºC
【E】-30ºC~-20ºC
【K】-25ºC~-15ºC
【B】-20ºC~-10ºC
【J】-10ºC~0ºC
【F】0ºC~+4ºC/5ºC
【C】+2ºC~+8ºC
【T】+10ºC~+20ºC
【D】+15ºC~+25ºC
【P】+20ºC~+30ºC

VB672B

-2~8℃、-25~-15℃、15~25℃
6L
72h

VB872B

-2~8℃、-25~-15℃、15~25℃
8L
72h

VB1296B

-2~8℃、-25~-15℃、15~25℃
12L
96h

VB2896B

-2~8℃、-25~-15℃、15~25℃
28L
96h

VB6096B

-2~8℃、-25~-15℃、15~25℃
60L
96h

VB9096B

-2~8℃、-25~-15℃、15~25℃
90L
96h

VB80120B

-2~8℃、-25~-15℃、15~25℃
80L
120h

VB125120B

-2~8℃、-25~-15℃、15~25℃
125L
120h

VB160120B

-2~8℃、-25~-15℃、15~25℃
160L
120h

Product Specification

Model No.
VB672B
Payload Volume
6 Liters
Coolant Type
PCM Coolant
Weight
5.8Kg
Outer Dimension
370*370*385mm
Payload Size
185*185*185mm
Product Type
Reusable Type
Product Series
VB Series

Detail Picture

Application

Suitable for vaccines, drugs, reagents, sensitive chemicals and electronic components to be transported across international borders for a long time.

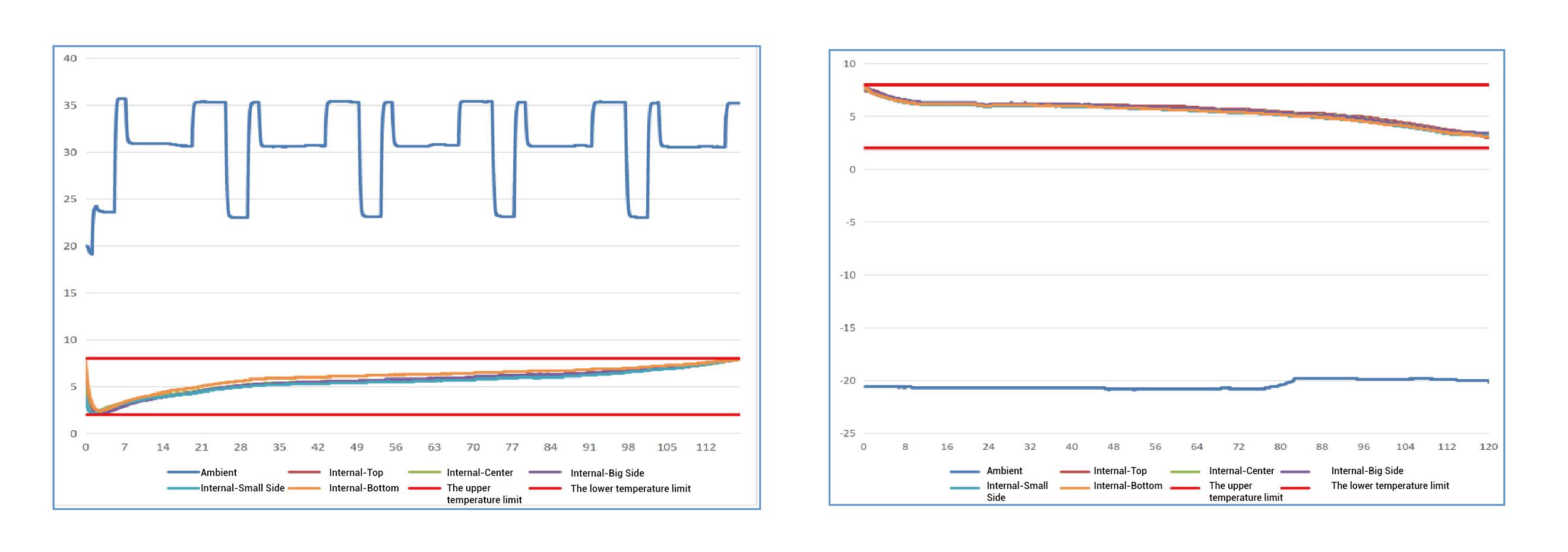

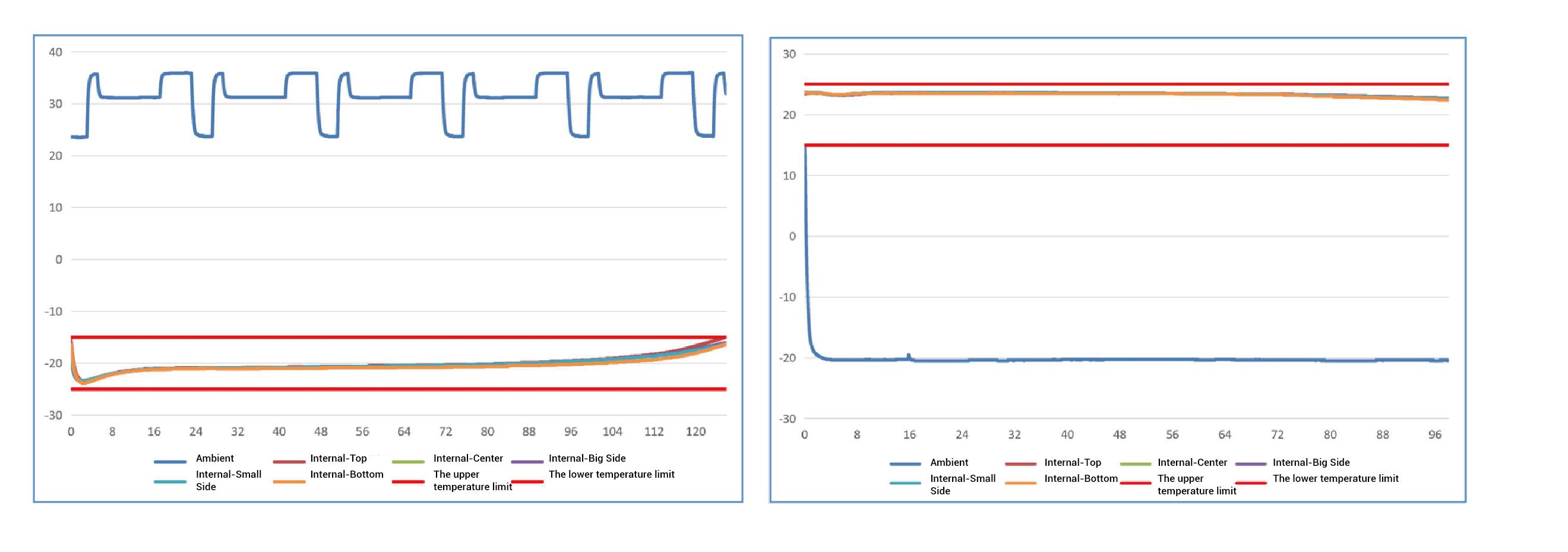

Testing Graph
