Lora Network Temperature and Humidity Data Logger
Based on Lora communication technology--Wireless Connectivity, SenCe logger is used for real-time monitoring and logging the temp & humidity of refrigerated trucks, cold storage, refrigerators and cooler boxes.It is capable of automatically recording and storing data, enabling remote monitoring, giving over-temperature alarms and conducting data analysis, etc. It possesses the characteristics of low power consumption, stable communication and strong penetration.Streamline your cold transport with SenCe.

Function

  • · Real-time temperature and humidity monitoring
  • · Intelligent report generation
  • · Comprehensive alarm system
  • · Historical records query and traceability
  • · GPS-enabled precise location

Feature

  • · Simplified deployment and maintenance, no drilling or wiring required;
  • · Easy networking with low cost, enabling real-time monitoring of thousands of sensors;
  • · Ultra-low power consumption for long standby time;
  • · Strong and stable signal with excellent penetration, easily covering carriages, cold storages, refrigerators and cooler boxes.

DL-B01N

GPRS/WIFI/4G
GPS/LBS
9000mAh

DL-C21F

Lora
1~2 years

DL-C01F

Lora
1~3 year

Product Specification

Model No.
DL-M15C
Size
78mm*135mm*28.5mm
Work Temperature
-20℃~60℃
Storage temperature
0~100%RH
Location Type
GPS/LBS
Charging Interface
DC5.5/2.1 or Micro USB
Transmission Type
GPRS/WIFI/4G optional
Alarm Type
Sound and light, SMS, email, Wechat
Battery Type
Rechargeable lithium battery 18650
Battery Capacity
9000mAh (Rechargeable)
Standby
>5 days (good signal, GSP on, 5 minutes to upload data)
Recording Interval
1 to 255 minutes (adjusted according to acquisition interval)
Display
STN Dot Matrix Screen
Location Type
GPS/LBS
Production Grade
>IP65
Power Supply Mode
DC 5V1A
Data storage capacity
64 MB
Communication relay connection number
>300 Terminals

Detail Picture

Application

Suitable for vaccines, drugs, reagents, sensitive chemicals and electronic components to be transported across international borders for a long time.

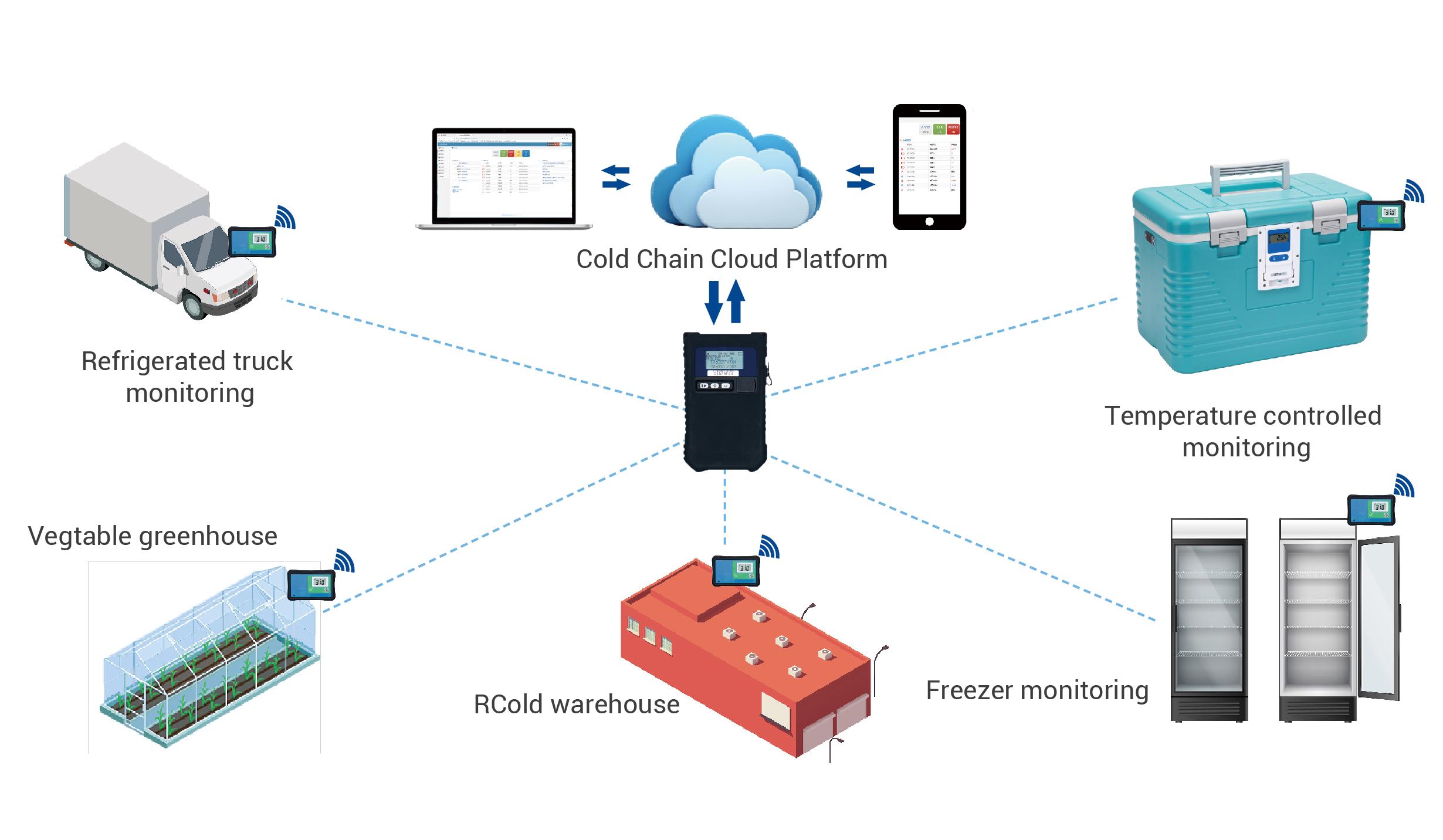

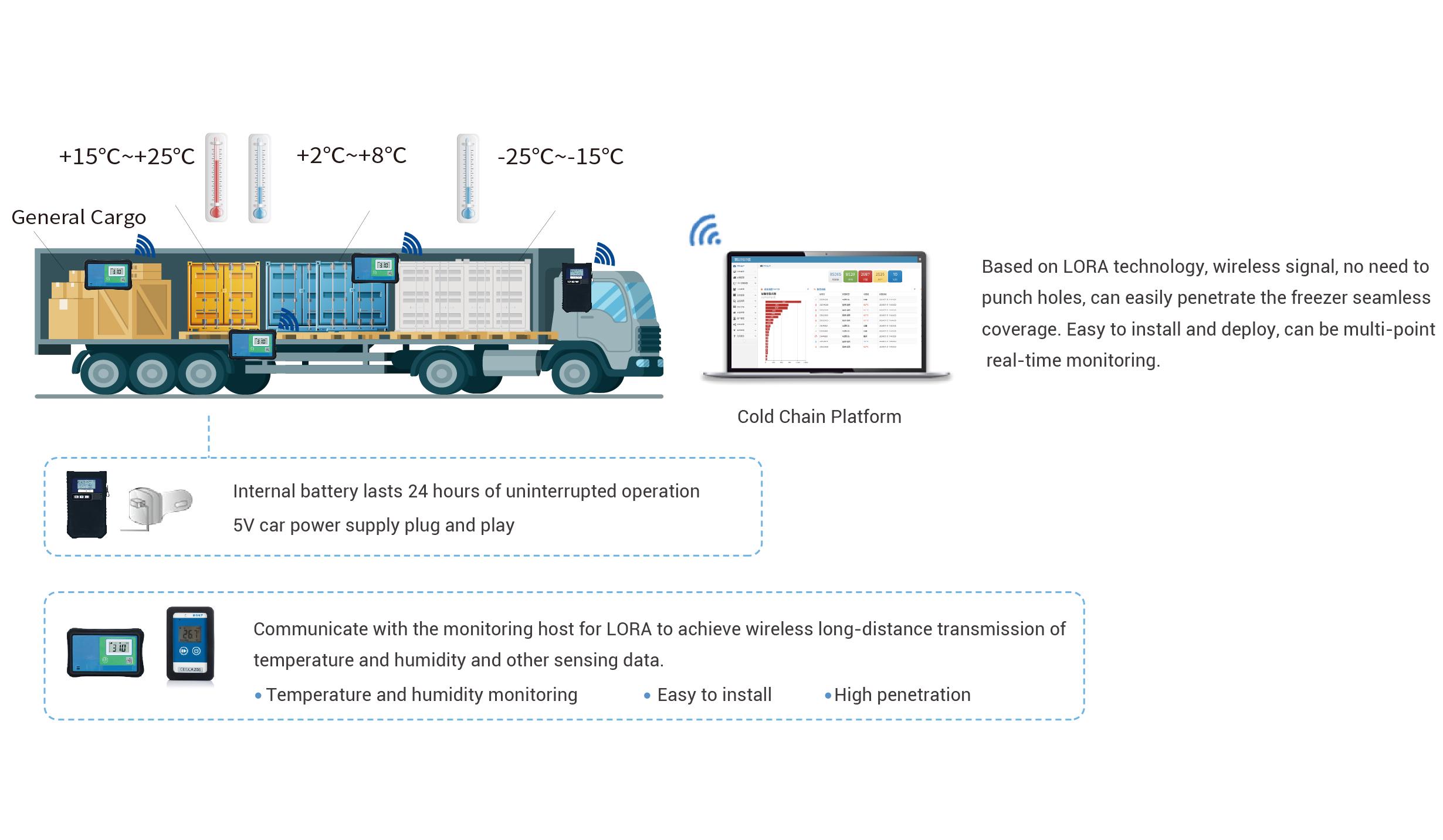

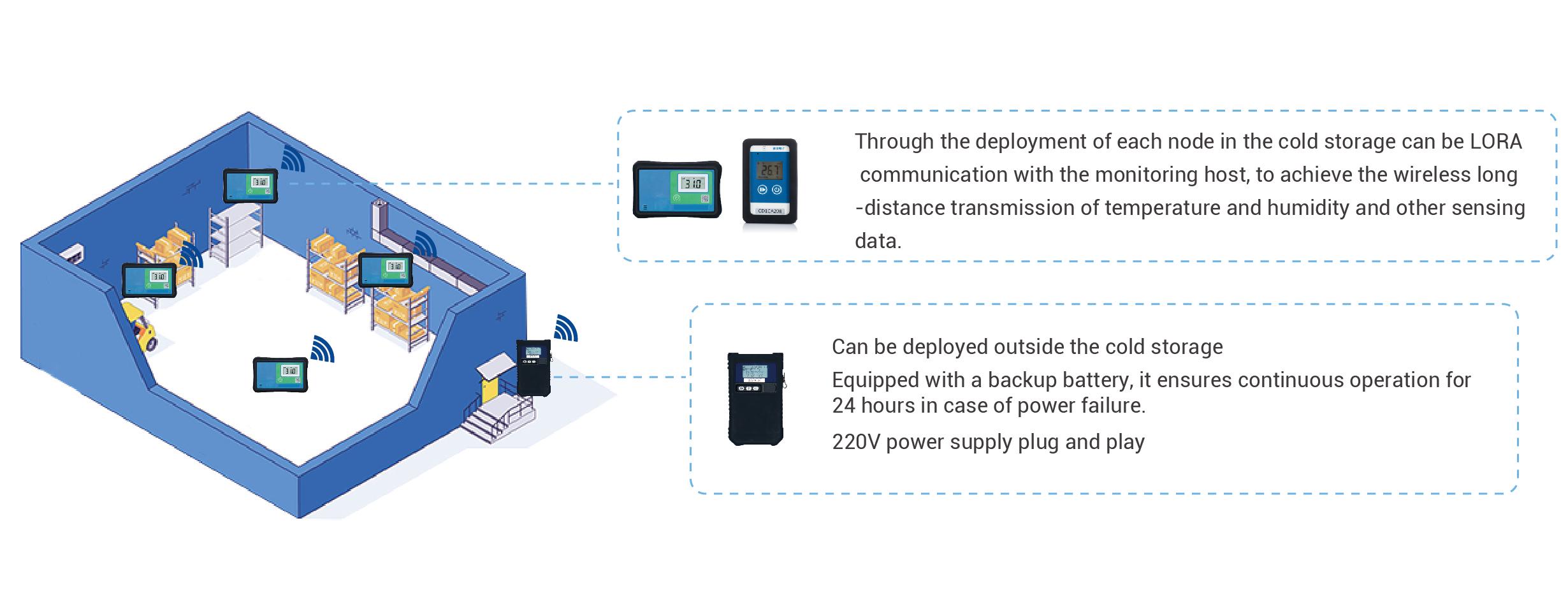

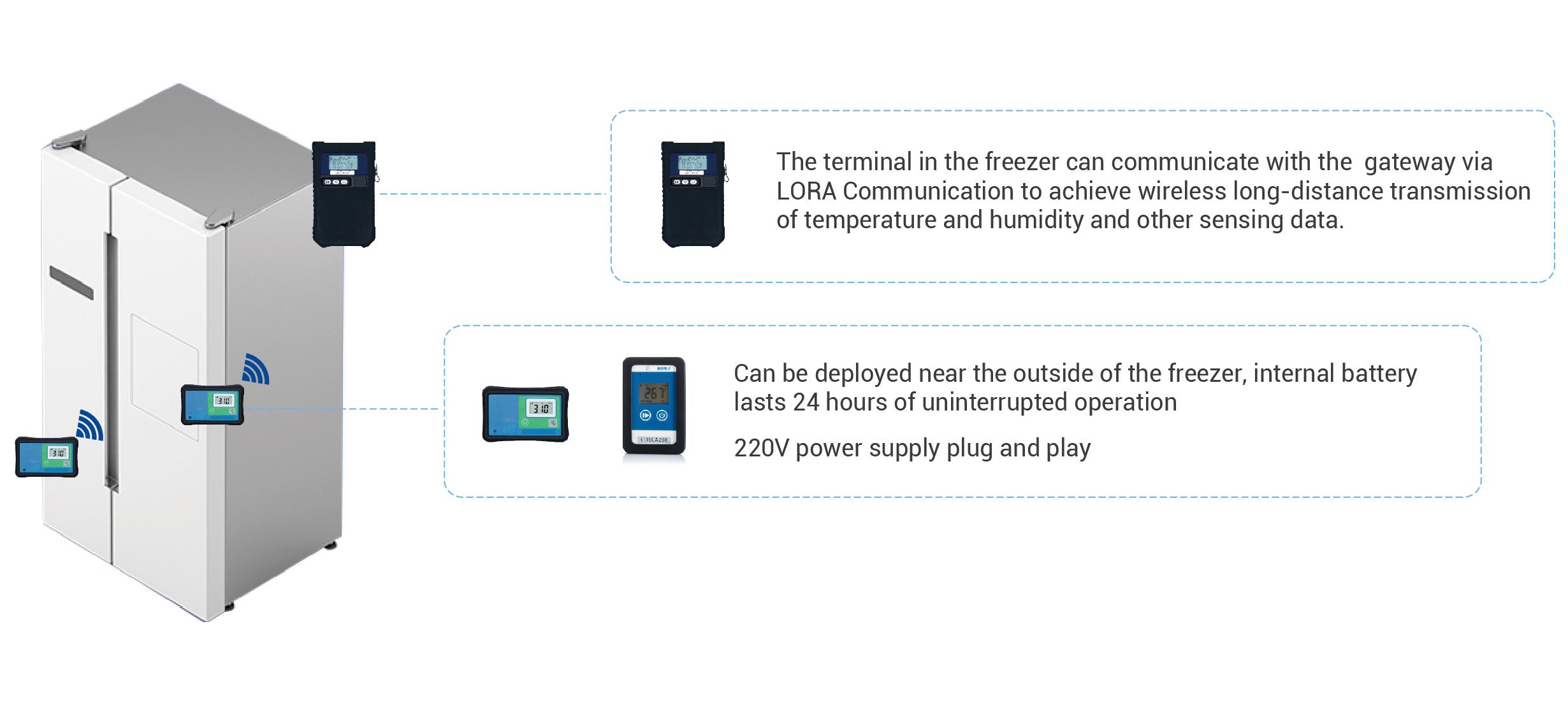

Applicable scope Refrigerated truck monitoring Cold Warehouse Monitoring Freezer monitoring
